Caractéristiques
- Type: Séparateur de phases
- Largeur: 65
- Hauteur: 15
- Diamètre: 150
- Certification environnementale: NF CES
- Principales
- gamme : Prisma
- compatibilité de gamme : Prisma P

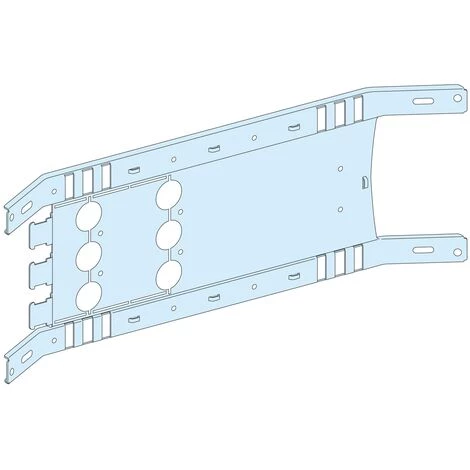

- fonction produit : Platine de montage
- catégorie d’accessoire / d’élément séparé : Accessoire d’installation
- produit installé : Compact : fixe INS250 – contrôle: poignée rotative frontale directe – vertical installation
Compact : fixe INV250 – contrôle: poignée rotative frontale directe – vertical installation
Compact : fixe NSX100 à 160 avec protection differentielle – contrôle: par maneton – vertical installation
Compact : fixe NSX250 avec protection differentielle – contrôle: par maneton – vertical installation
Compact : fixe NSX100 à 160 sans protection differentielle – contrôle: par maneton – vertical installation
Compact : fixe NSX250 sans protection differentielle – contrôle: par maneton – vertical installation
Easypact : fixe CVS100…160 sans protection differentielle – contrôle: par maneton – vertical installation
Easypact : fixe CVS250 sans protection differentielle – contrôle: par maneton – vertical installation
Easypact : fixe CVS100…160 avec protection differentielle – contrôle: par maneton – vertical installation
Easypact : fixe CVS250 avec protection differentielle – contrôle: par maneton – vertical installation - description des pôles : 1x 3P : fixe : INS250 vertical installation
1x 3P : fixe : INV250 vertical installation
1x 4P : fixe : INS250 vertical installation
1x 4P : fixe : INV250 vertical installation
4x 3P : fixe : NSX100 à 160 vertical installation
4x 3P : fixe : NSX250 vertical installation
4x 3P : fixe : CVS100…160 vertical installation
4x 3P : fixe : CVS250 vertical installation
3x 4P : fixe : NSX100 à 160 vertical installation
3x 4P : fixe : NSX250 vertical installation
3x 4P : fixe : CVS100…160 vertical installation
3x 4P : fixe : CVS250 vertical installation
3x 3P : fixe : INS250 vertical installation
2x 4P : fixe : INS250 vertical installation
3x 3P : fixe : INV250 vertical installation
2x 4P : fixe : INV250 vertical installation
- Complémentaires
- description du coffret/armoire : Cellule – largeur 650 mm, profondeur 400 mm
- nombre de modules verticaux : 6 module(s) : NSX100 à 160 sans protection differentielle , Linergy FC en cellule
7 module(s) : NSX250 sans protection differentielle , Linergy FC en cellule
8 module(s) : NSX100 à 160 sans protection differentielle , direct en cellule
8 module(s) : NSX100 à 160 avec protection differentielle , Linergy FC en cellule
9 module(s) : NSX250 avec protection differentielle , Linergy FC en cellule
9 module(s) : NSX250 sans protection differentielle , direct en cellule
9 module(s) : CVS100…160 sans protection differentielle , direct en cellule
9 module(s) : CVS250 sans protection differentielle , direct en cellule
10 module(s) : NSX100 à 160 avec protection differentielle , direct en cellule
11 module(s) : NSX250 avec protection differentielle , direct en cellule
11 module(s) : CVS100…160 avec protection differentielle , direct en cellule
11 module(s) : CVS250 avec protection differentielle , direct en cellule
7 module(s) : INS250 , Linergy FC en cellule
9 module(s) : INS250 , direct en cellule
7 module(s) : INV250 , Linergy FC en cellule
9 module(s) : INV250 , direct en cellule - hauteur : 150 mm
- poids : 1.28 kg
- finition de la surface : Mat
Lisse - traitement de protection : Électrophorèse et poudre d’époxy-polyester polymérisée à chaud
- couleur : Blanc RAL 9001
- Environnement
- normes : NF EN 61439-2
- certifications du produit : ASEFA
- Durabilité de l’offre
- Statut environnemental : Produit Green Premium
- RoHS (code date: AnnéeSemaine) : Conforme – depuis 0722 – Déclaration de conformité Schneider Electric
- REACh :
- Profil environnemental du produit : Disponible
- Instructions de fin de vie du produit : Disponible
- Garantie contractuelle
- Période : 18 mois
